Lister Machine Tools Ltd. represents SUNRISE Fluid Power Inc. who specialize in the manufacture of hydraulic ironworkers, punching machines and bending machines for over 20 years.
SUNRISE is ISO-9001 certified by BVQI, and their products meet the CE safety requirements and regulations. Quality of the highest standard is the key factor in their success. All key components of Sunrise ironworkers, punching machines etc. are made in-house at modern plant and automated production lines. They use the latest control system to ensure highly efficient production.

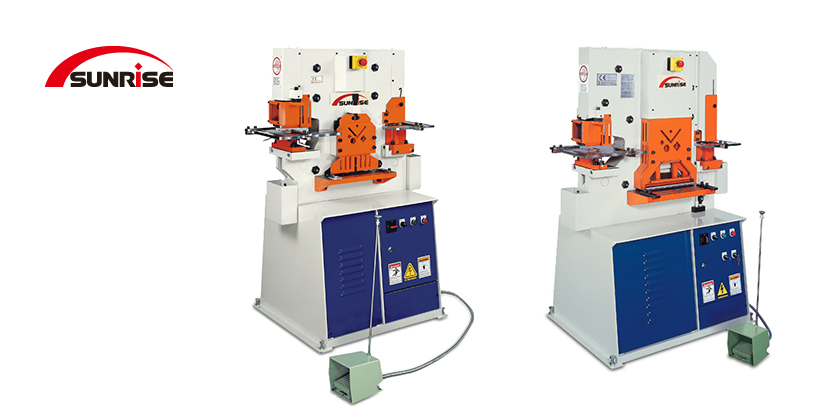

The IW-K series of Ironworkers is a compact ironworker that comes complete with a notcher.The frame recess below the punching station allows punching on the flange of large size channel or beam profiles. Mitre shear of angles can be carried out at the flat bar shear station. This model incorporates versatility, efficiency, accuracy and ease of use. Available in 45Ton and 60Ton.
The IW-45M Ironworker has four standard stations, capable of a wide range of applications. The punching station can be converted into a notching station. The IW-45M is heavier and stronger than other competitive machines.

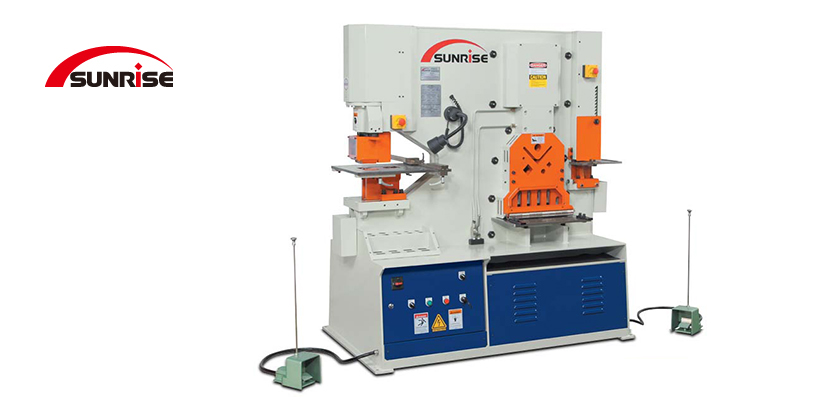

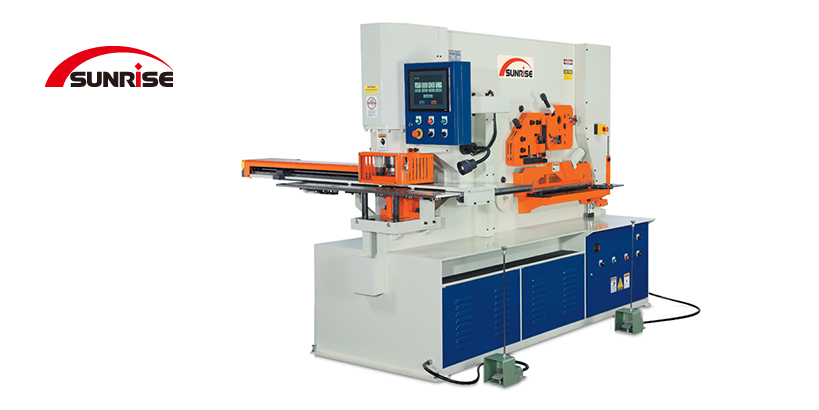

The double cylinder “S/SD” series of Ironworkers are in the Sunrise tradition of well engineered ironworkers built for high power, quality and reliability. These ironworkers have two control foot paddles, therefore separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. The large punching base with the “T-slot” fixing provide a solid base for securing the punching tooling, as well as a wide range of optional and custom designed tooling. Available in 60 to 165 tons.

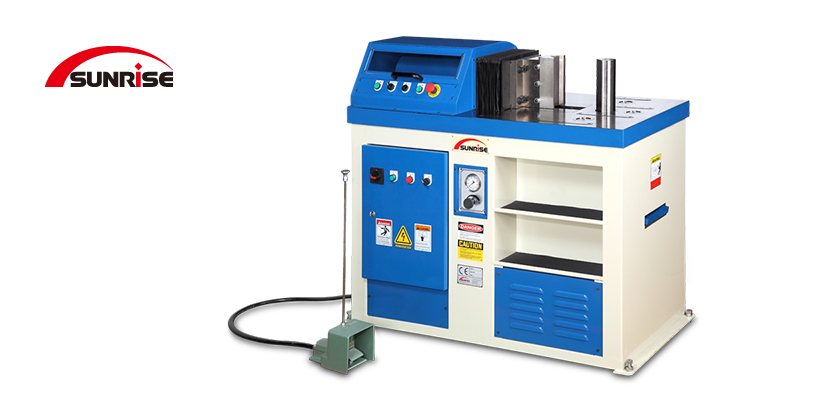

The HBM Series of Hydraulic bending machines from Sunrise are the newest addition to the SUNRISE product lines of high quality and reliable hydraulic metal working machines. A wide range of tooling is available to satisfy a variety of bending operations. Custom design tools for special requirements are available.
SUNRISE punching machine PM series range from 35 tons to 200 tons and come in 310mm, 510mm, and 760mm throat depths. Punching efficiency and precision are greatly improved with the optional multi-stop table, duplicating table, or the CNC controlled positioning table. Add optional tooling, i.e.: pipe notcher, press brake, angle shear, bar shear and channel shear to turn these punching machines into multi-purpose machines.
